Open frame

Low noise

Model

LHGF-275

Rated Power

200KW

250KVA

Standby Power

220KW

275KVA

Rated Voltage

127/220 220/380,230/400,240/415 V

Rated Frequency

50HZ / 60HZ

Rated Speed

1500rpm / 1800rpm

Start Control method

Electric CD24V

Output Factor

COS Φ= 0.8 (lag)

Noise (LP7m)

                              Open：95dB

                            Silent：70-75dB

Engine Brand

Weichai

Engine Model

WP10D238E200

Engine Power

238KW

Cylinder Diameter Stroke

126*130(mm)

Displacement

9.726L

Speed Adjustment Mode

Electronic speed regulation

Air Intake Mode

Turocharging with intercoole

Type

In-line, four-stroke, water-cooled, direct injection

Number of Cylinders

6 cylinder

Generator Brand

Hutai/Stamford/Leroy Somer/Marathon

Rated Power

200KW

Rated Capacity

250KVA

Insulation Grade

H

Protection Level

IP21

Mode of Connection

Three-phase Four-wire

Accommodation Mode

AVR (automatic voltage regulator）

Brand

Longhong/SmartGen/ComAp/Deepsea

Protective function：low oil pressure, high water temperature, overspeed/low frequency, high/low voltage, overcurrent, etc

Protective function：ensure automatic switching to backup power supply in case of main power
failure, thereby ensuring the continuity of power supply

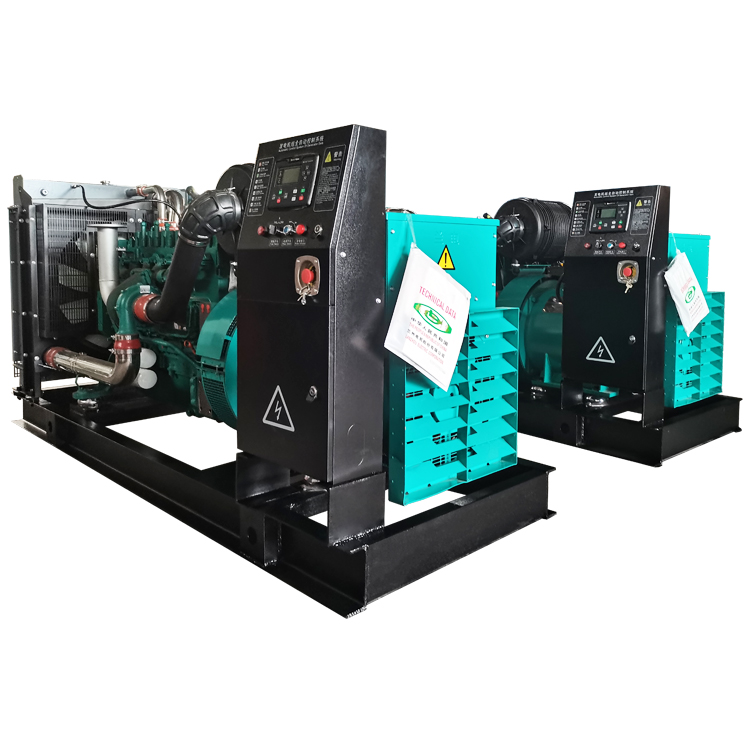

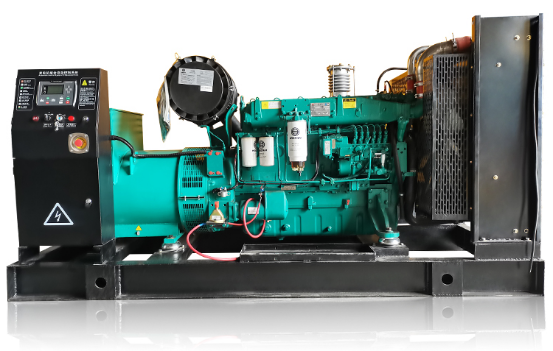

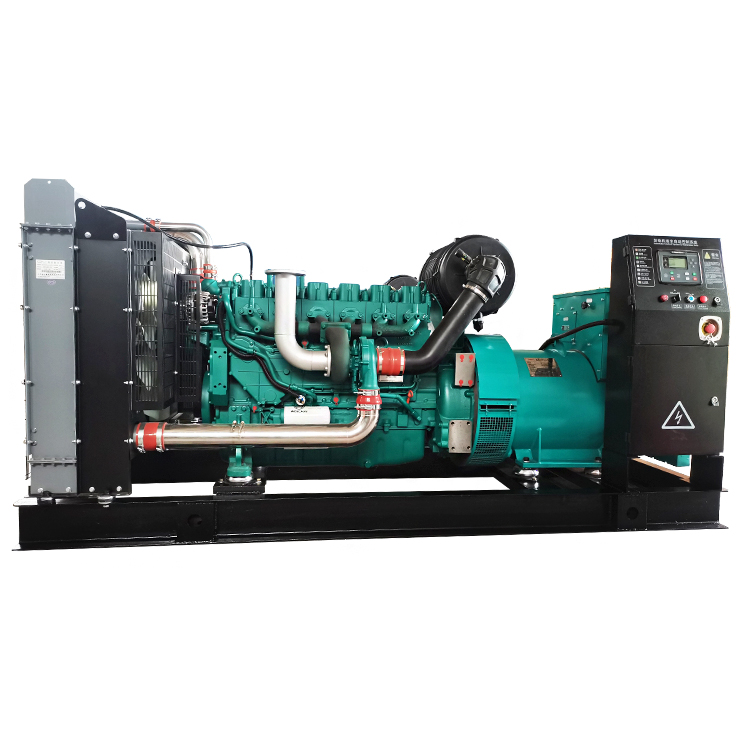

Open type

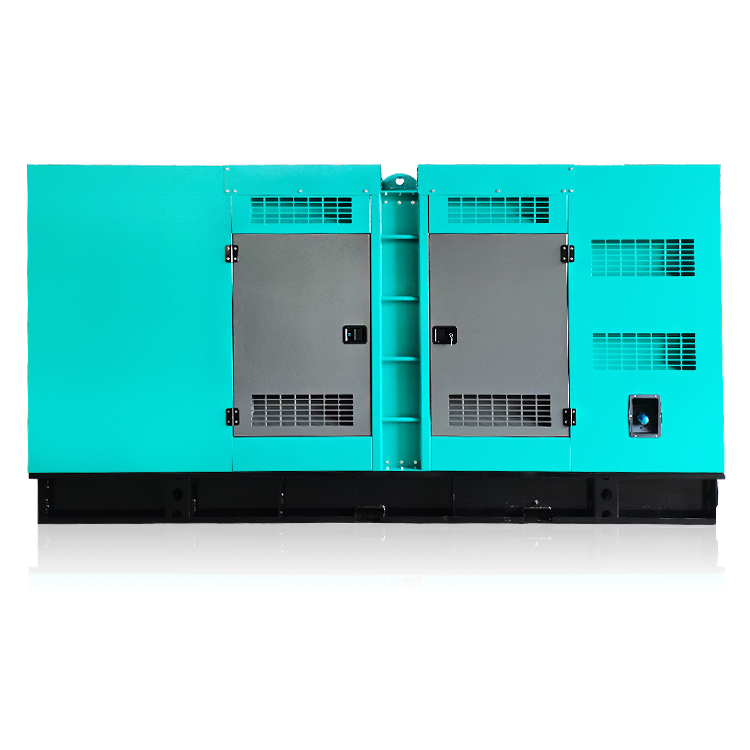

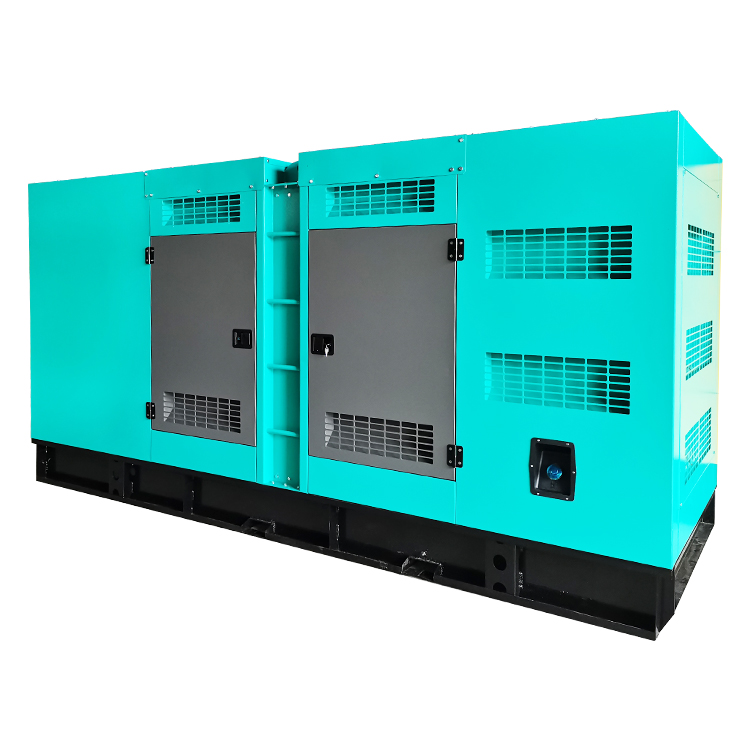

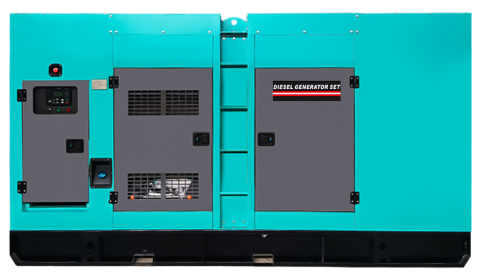

Silent type

Trailer type

Container type

Dimensions of open type genset

Dimensions of silent type genset

L*W*H   2900*1050*1500（mm）

L*W*H    3600*1300*2050（mm）

Weight   2250 （Kg）

Weight  3050 （Kg）
