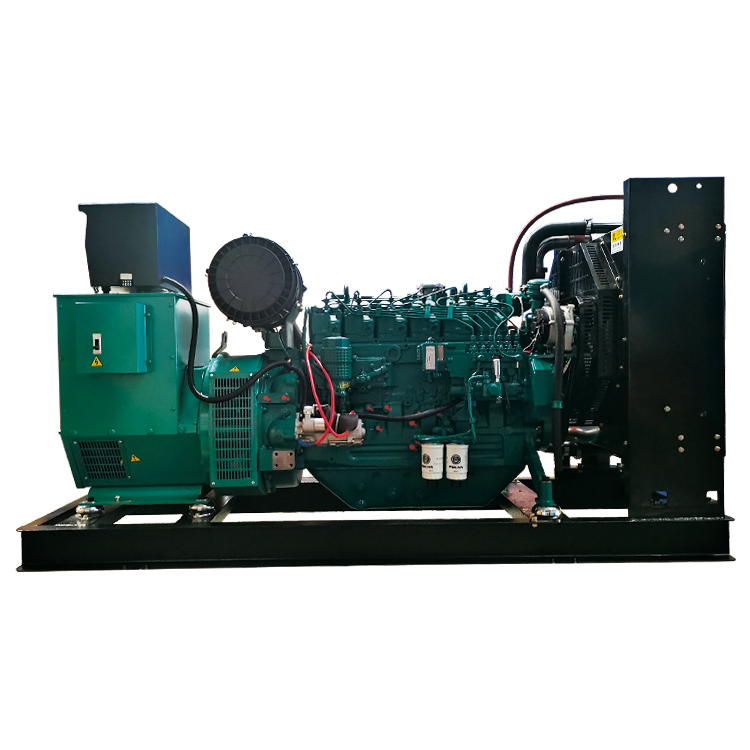

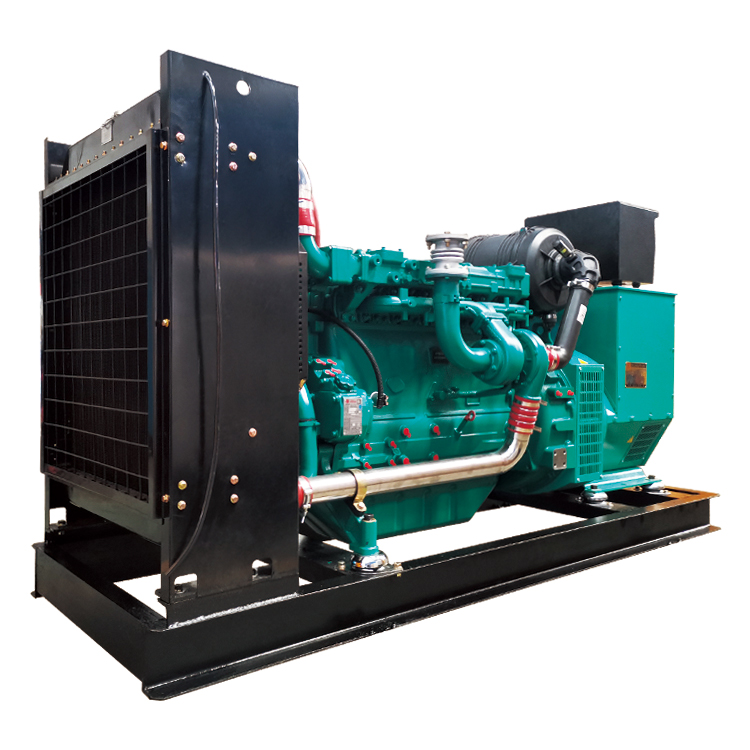

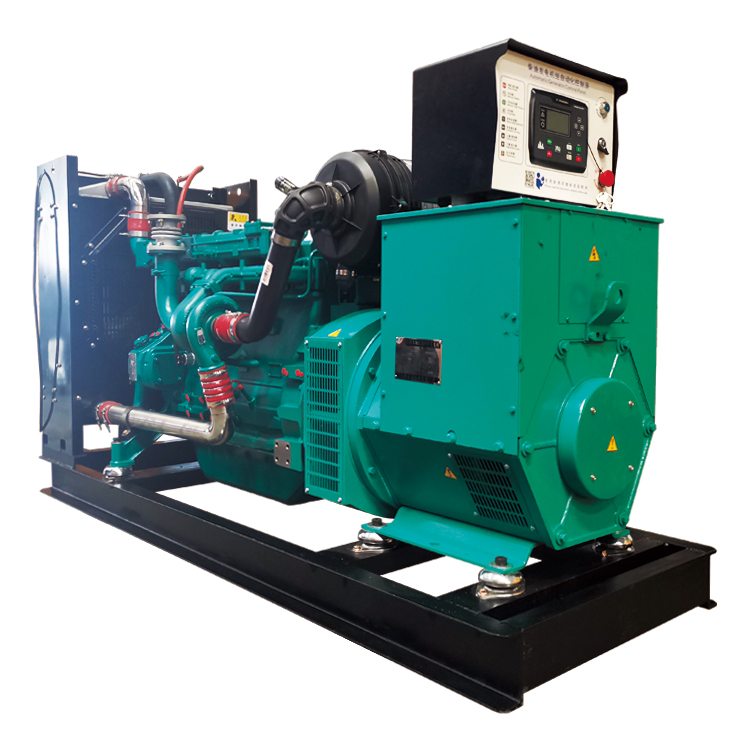

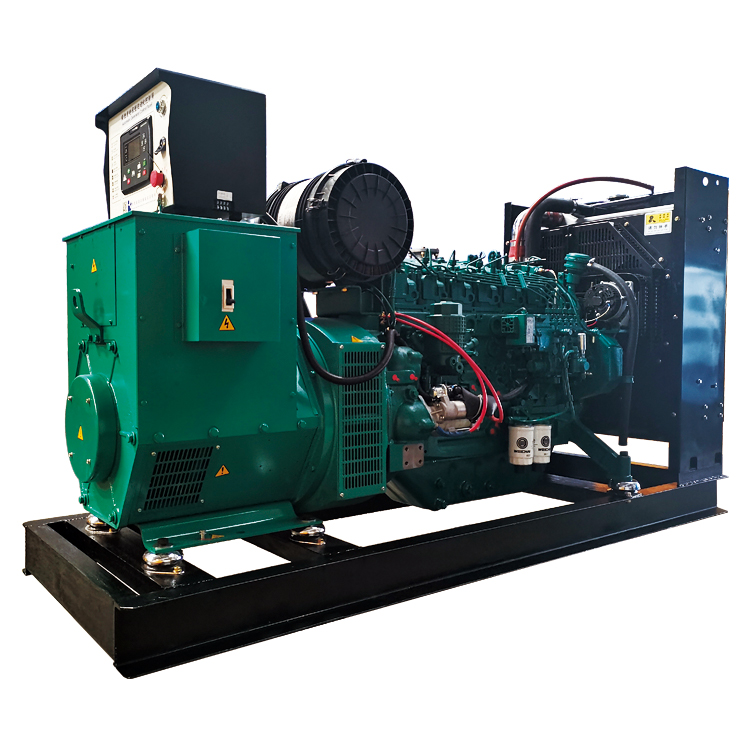

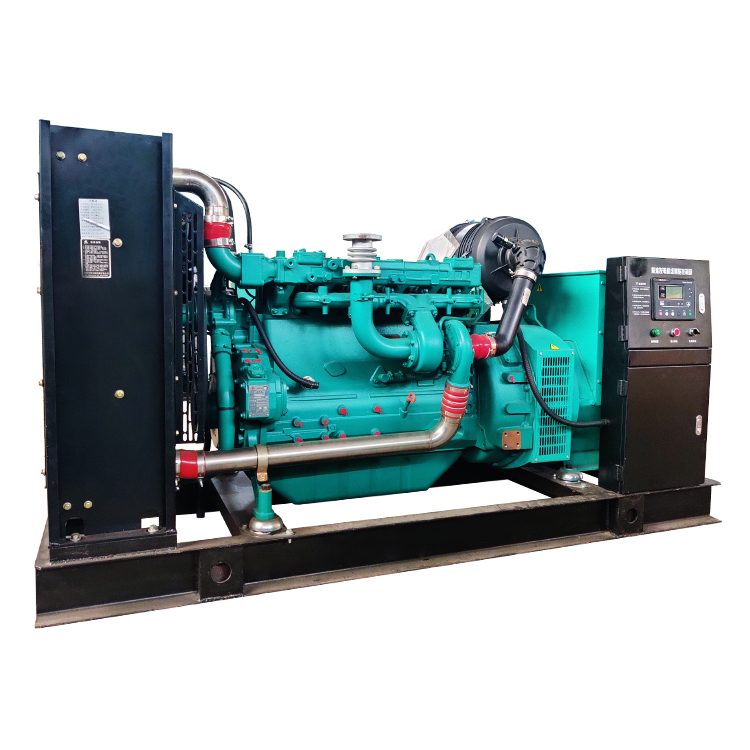

Open frame

Low noise

Model

LHGF-138

Rated Power

100KW

125KVA

Standby Power

110KW

138KVA

Rated Voltage

127/220 220/380,230/400,240/415 V

Rated Frequency

50HZ / 60HZ

Rated Speed

1500rpm / 1800rpm

Start Control method

Electric CD24V

Output Factor

COS Φ= 0.8 (lag)

Noise (LP7m)

                              Open：95dB

                            Silent：70-75dB

Engine Brand

Weichai

Engine Model

WP4.1D113E200

Engine Power

113KW

Cylinder Diameter Stroke

105*120(mm)

Displacement

4.088L

Speed Adjustment Mode

Electronic speed regulation

Air Intake Mode

Turocharging

Type

In-line, four-stroke, water-cooled, direct injection

Number of Cylinders

4 cylinder

Generator Brand

Hutai/Stamford/Leroy Somer/Marathon

Rated Power

100KW

Rated Capacity

125KVA

Insulation Grade

H

Protection Level

IP21

Mode of Connection

Three-phase Four-wire

Accommodation Mode

AVR (automatic voltage regulator）

Brand

Longhong/SmartGen/ComAp/Deepsea

Protective function：low oil pressure, high water temperature, overspeed/low frequency, high/low voltage, overcurrent, etc

Protective function：ensure automatic switching to backup power supply in case of main power
failure, thereby ensuring the continuity of power supply

A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads

Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios

Open type

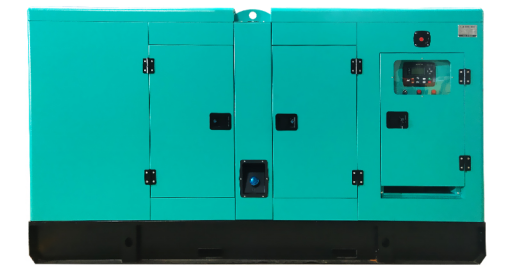

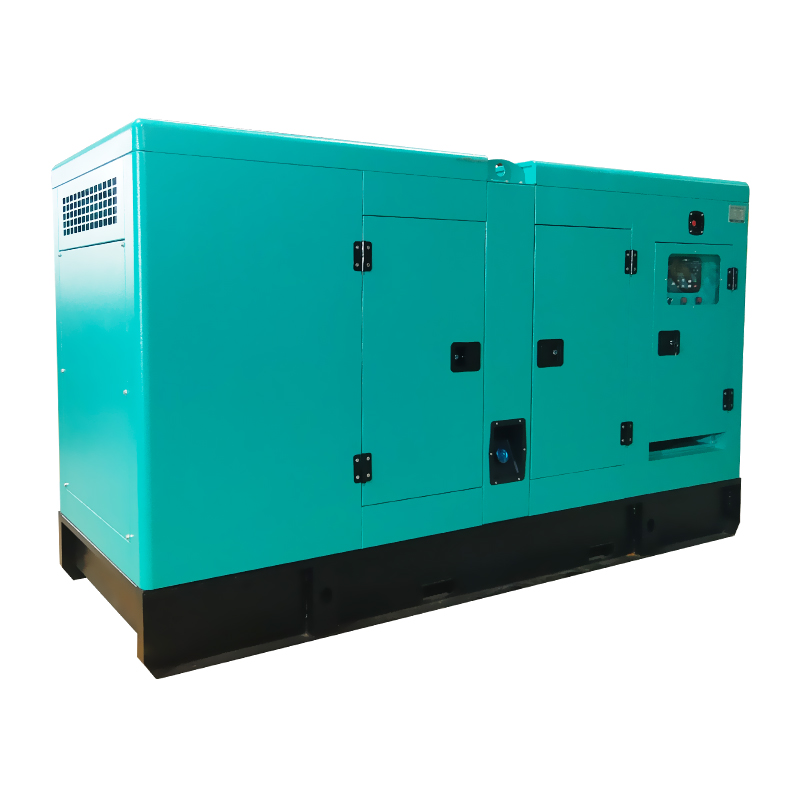

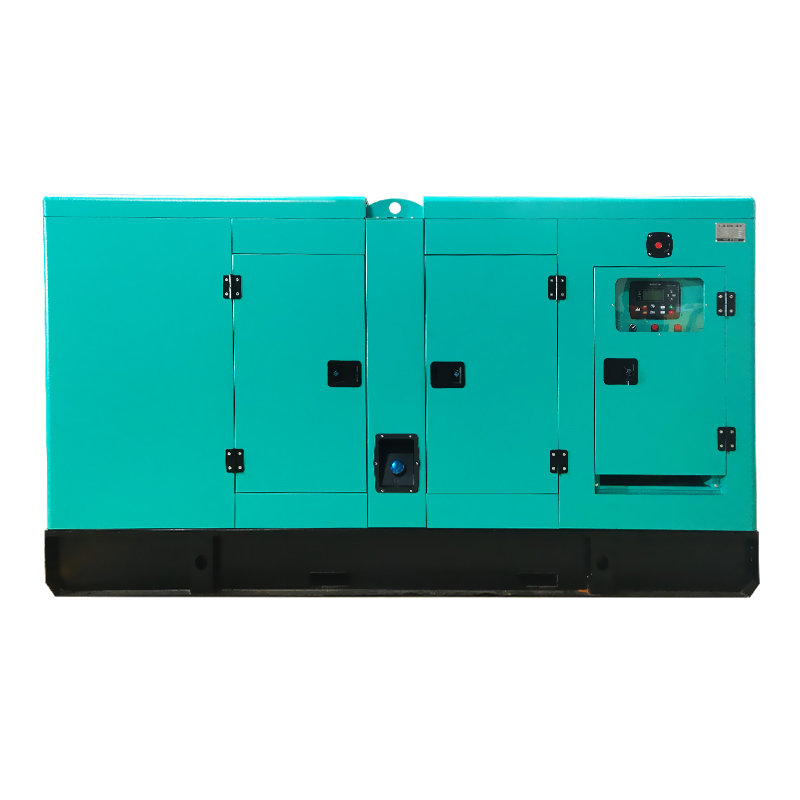

Silent type

Trailer type

Container type

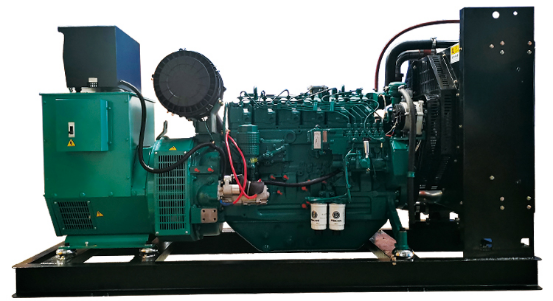

Dimensions of open type genset

Dimensions of silent type genset

L*W*H   2000*760*1150（mm）

L*W*H    2500*1100*1500（mm）

Weight   970 （Kg）

Weight  1370 （Kg）
