Open frame

Low noise

Model

LHGF-2338

Rated Power

1700KW

2125KVA

Standby Power

1870KW

2338KVA

Rated Voltage

127/220, 220/380, 230/400, 240/415 V

Rated Frequency

50HZ / 60HZ

Rated Speed

1500rpm / 1800rpm

Start Control method

Electric CD24V

Output Factor

COS Φ= 0.8 (lag)

Noise (LP7m)

Open：95dB；Silent：70-75dB

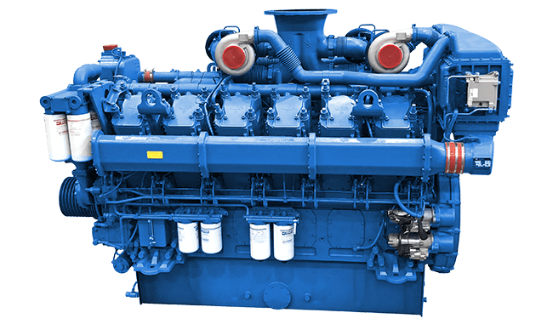

Engine Brand

Yuchai

Engine Model

YC12VC2700-D31

Engine Power

1805/1985KW

Cylinder Diameter Stroke

200*210(mm)

Displacement

79.17L

Speed Adjustment Mode

Electric control

Air Intake Mode

Turocharging with intercooler

Type

In-line, four-stroke, water-cooled, direct injection

Number of Cylinders

12 cylinder

Generator Brand

Hutai/Stamford/Leroy Somer/Marathon

Rated Power

1700KW

Rated Capacity

2125KVA

Insulation Grade

H

Protection Level

IP21

Mode of Connection

Three-phase Four-wire

Accommodation Mode

AVR (automatic voltage regulator）

Brand

Longhong/SmartGen/ComAp/Deepsea

Protective function：low oil pressure, high water temperature, overspeed/low frequency, high/low voltage, overcurrent, etc.

Protective function：ensure automatic switching to backup power supply in case of main power
failure, thereby ensuring the continuity of power supply.

A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads.

Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios,

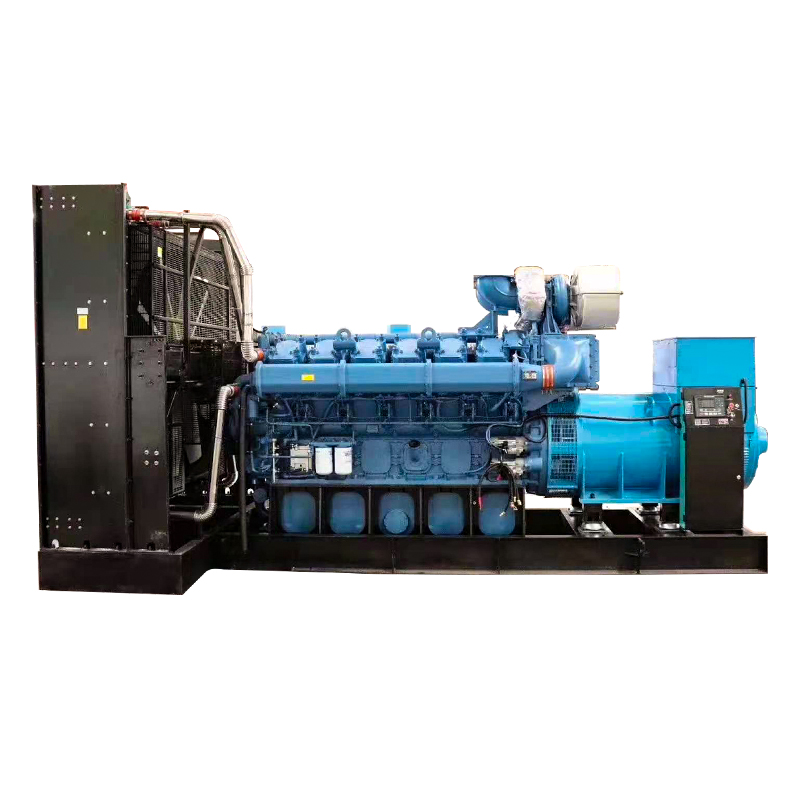

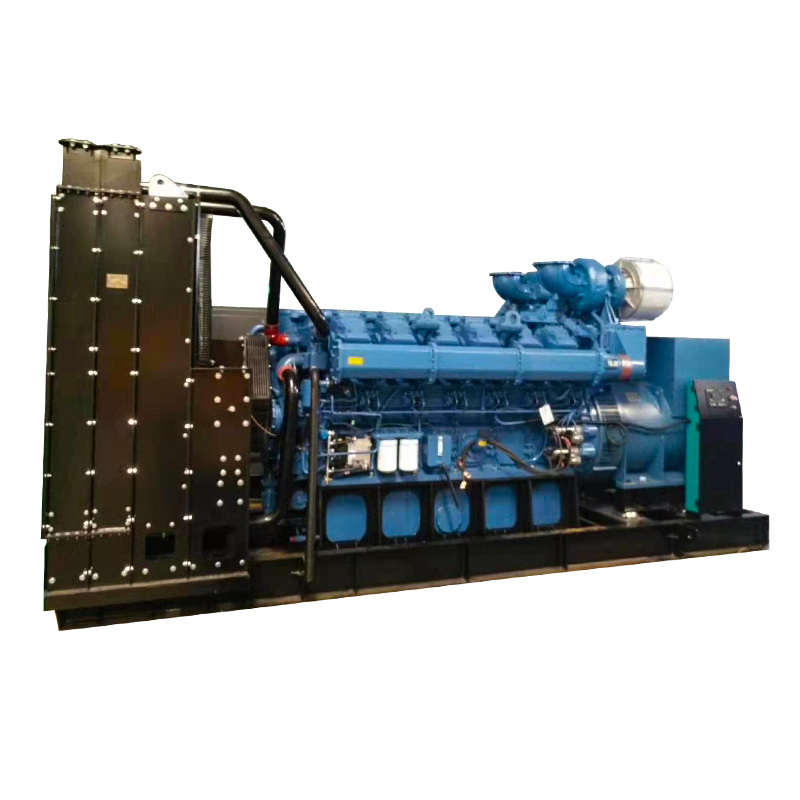

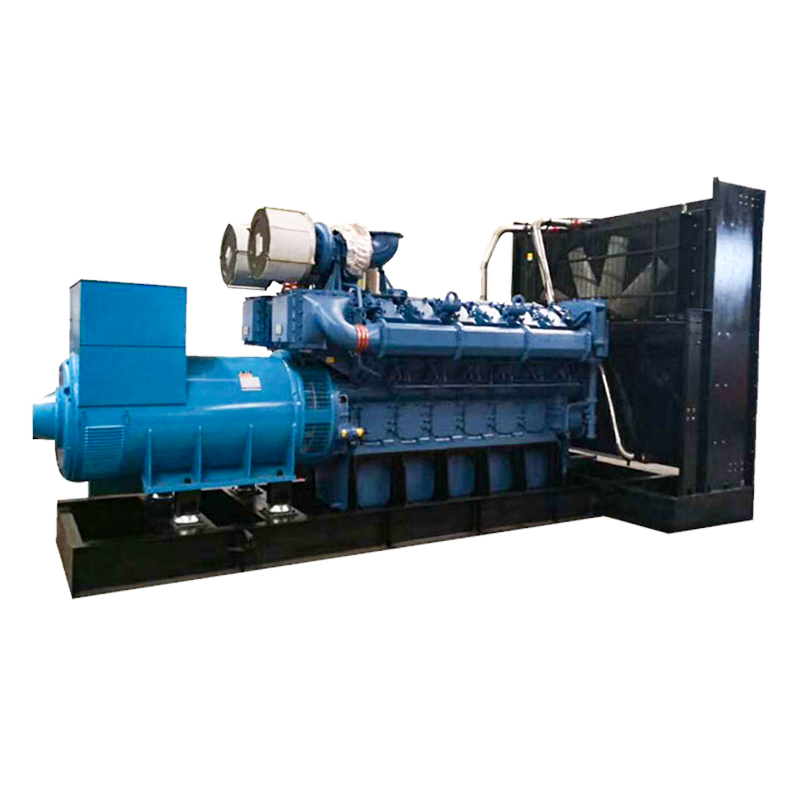

Open type

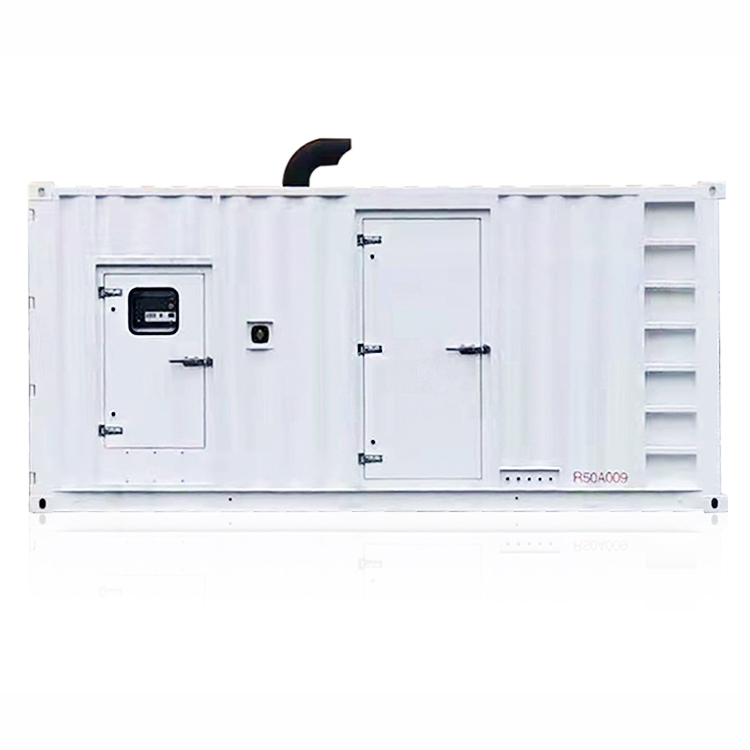

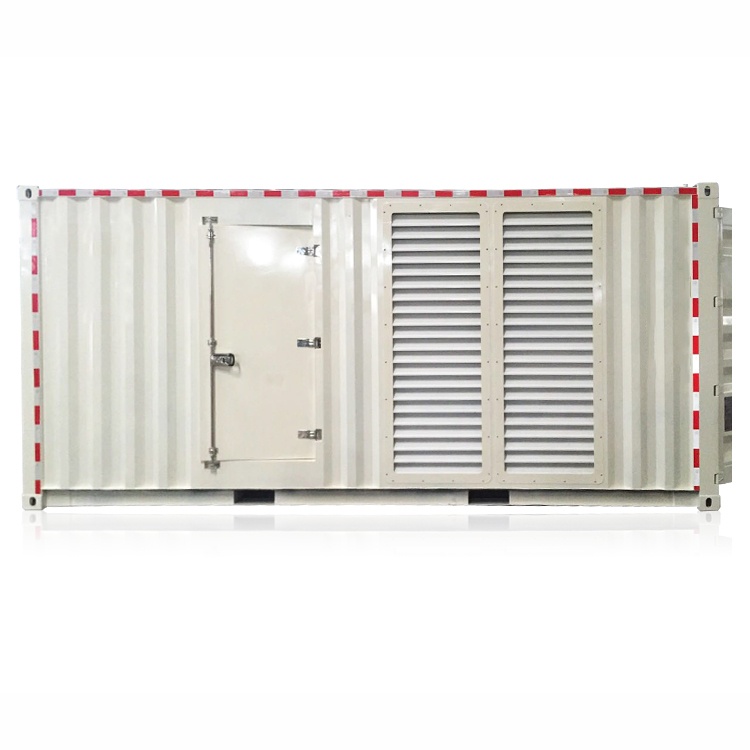

Silent type

Trailer type

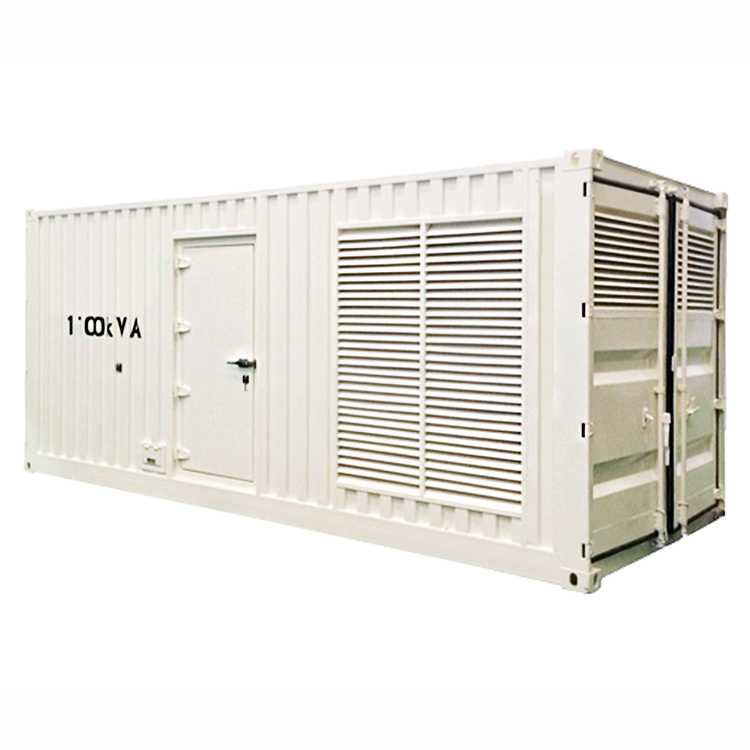

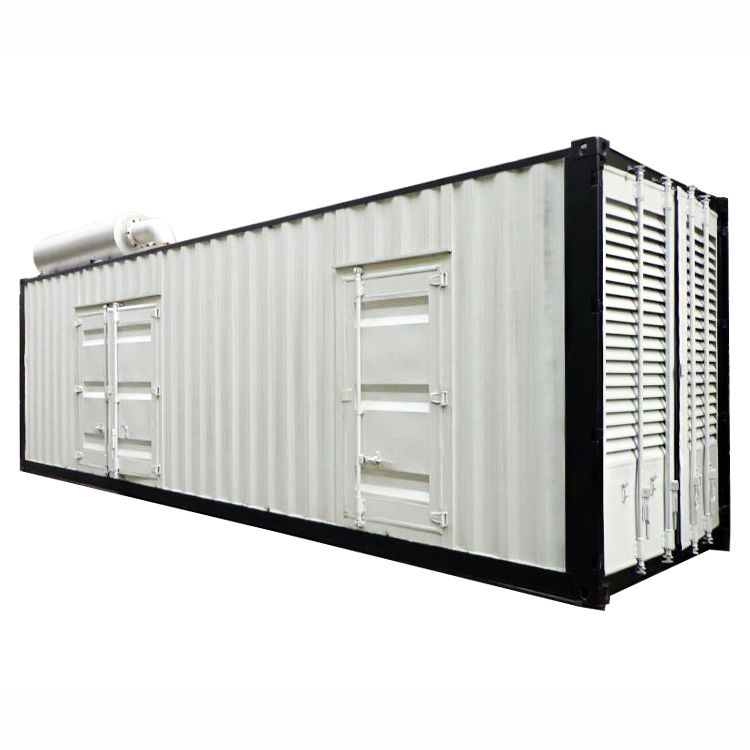

Container type

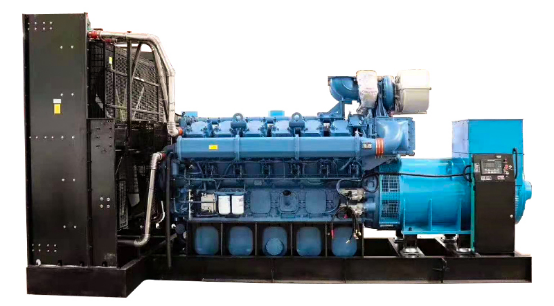

Dimensions of open type genset

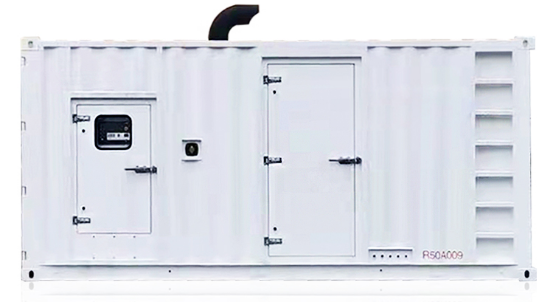

Dimensions of silent type genset

L*W*H  7500*2300*2800（mm）

L*W*H    40HQX

Weight   15000（Kg）

Weight   19000（Kg）
